See the New 6.0mm VJ-3 Video Borescope in Action
The 6.0mm VJ-3 delivers all the features you would expect in a high-quality video borescope at a price that makes it accessible to almost anyone. Aircraft & power generation maintenance teams can quickly and easily inspect turbine blades, combustion chambers, cooling tubes, and much more, all without the need for costly and time consuming engine and system tear-down.
If you perform regular maintenance inspections, you owe it to yourself to demo the new 6.0mm VJ-3. Available in 1.5m, 3.0m, 5.0m, or 8.0m lengths.
In our discussions with many borescope technicians, we have found that technicians can often access their inspection targets from multiple locations. Using this principle, for example, a technician may be able to inspect a 52-foot pipe with a 6mm x 8-meter (26’ 2”) borescope if the inspector can start the inspection from each end of the pipe.

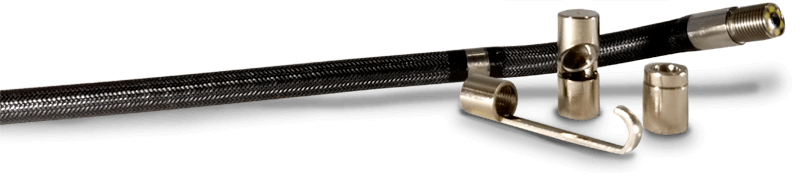

Thread-On Accessories Kit
The Thread-on Accessories Kit for the ViewTech 6.0mm VJ-3 securely attaches to the insertion tube for increased flexibility and utility.
*Only available with select VJ-3 6.0mm models.
Click on the tips below for more information.
Or check out our dedicated
Dual-Camera Borescope
If you are interested in a borescope that has both a forward facing camera and a dedicated 90 degree side camera, please see our Dual Camara VJ-3 borescope.
Don’t Be Left In The Dark
Our 6.0mm borescope has an impressive 20,000 Lux, 6-Stage LED illumination.
Seeing Is Believing
The VJ-3 comes standard with a 3.5” IPS antiglare LCD monitor.
Industrial Construction
We built the VJ-3 to last, with one of the highest IP ratings out on the market.
Peace Of Mind
Part of the ViewTech advantage is the full 1-year warranty and free loaner program.
Support After The Sale
We provide outstanding service before, during, and most importantly, after your purchase.
Next-Day Shipping
Unlike our competitors we have hundreds of borescopes at our facility, ready to ship out.
Insertion Tube
Outer Diameter | 6.0mm |
Length | 1.5m, 3.0m, 5.0m, 8.0m |
Exterior Material | Tungsten EasyGlide, crush-resistant |
Chemical Compatibility | Water, machine oil, heating oil, diesel, 3.5% saline concentrate |
Articulation Range | 360° around, 160±10° backward |
Optics
Field of View | 100° x 75° |
Depth of Field | 7.0mm – ∞ |
Effective Pixels | 450,000 pixels |
Illumination Method | 6 Super high-intensity white LEDs |
Illumination Output | ≤ 20,000lux |
Base Unit
Display Monitor | 3.5″ IPS anti-glare LCD, 640*480 resolution |
Articulation Control | Thumb-actuated, mechanical rocker |
Joystick Lock | Automatic |
Brightness Control | 6-step LED brightness adjustment |
Control Buttons | Image capture, video capture, LED control, frame rotation, freeze frame, 4X zoom, menu access / navigation |
Playback | Photos, videos (w/wo audio), thumbnail view |
Audio / Microphone | 3.5mm headset / microphone jack |
Removable Storage | All media captured on removable SD Card. Base Unit has no internal media storage capabilities. |
Data I/O ports | SD card, micro USB, TV Out (NTCS / PAL) or HDMI |
Battery | One 18650B PCB-Protected Li-ion battery (replaceable) |
AC Power (optional) | 100V – 240V |
Operating Method | One handed, portable |
Dimensions | 13.0″ x 12.0″ x 4.5″ |
Weight | 2.2 lbs. / 1.0 kg |
Manufacturing and Options
User Interface | Drop down operating menu |
File Management | Photo and video recording, playback, thumbnail preview, delete |
Image Control | Image rotation, live freeze, zoom in/out |
Image Format | JPEG, optional date and time stamp |
Video Format | AVI, optional date and time stamp |
Language | English, Spanish |
Operating Limits
Run Time | ≤ 4 Hours |
Operating Temp. Base Unit | -20 – 50°C, -5 – 120°F |
Operating Temp. Insertion Tube | F-10 – 50°C, 15 – 120°F |
IP Rating, Insertion Tube | IP67 |
IP Rating, Base Unit | IP54 |
Viewtech Literature
VJ-3 6.0mm BROCHURE
Download the Brochure for the ViewTech VJ-3 6.0mm by clicking the icon above or the link below.
VIEWTECH ALL BORESCOPES BROCHURE
Download the ViewTech All Borescopes Brochure by clicking the icon above or the link below.
VJ-3 USER MANUAL
Download the ViewTech VJ-3 User Manual by clicking the icon above or the link below.
VJ-3A USER MANUAL
Download the ViewTech VJ-3A User Manual by clicking the icon above or the link below.
Packed With Power
What’s Included with the 6.0mm VJ-3 Borescope:
- ViewTech’s 6.0mm video borescope
- 1.5m, 3.0m, 5.0m, or 8.0m insertion tube
- Removable stand
- Optional magnetic floor plate stand
- Rugged carrying case
- 2 Rechargeable Li-ion batteries
- Battery charger
- AV cords
- 16 GB full-size SD Card
- Insertion tube tip protector cap available
- Thread-On Accessories Tip Kit
- Side view adapter (SVA) tip
- Foreign Object Debris (FOD) retrieval hook tip
- See-through magnetic tip
